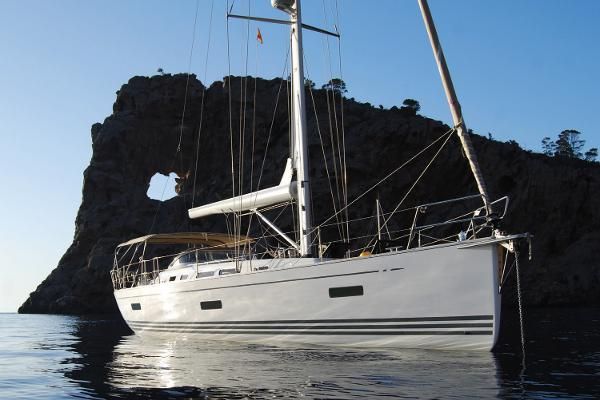

2022 X-Yachts Xc 45

• Built in sandwich construction with vinylester and polyester resin and structural compressed foam
• Bi-directional E-glass strategically positioned for strength and weight optimization
• Solid laminate in high stress areas around keel, rudder and through hull fittings
• Outer surface layer of hull in white sprayed NGA Gelcoat (RAL 9010 white) with 3 waterlines in NGA Gelcoat (RAL 7011 dark grey)
• Hull moulded in female moulds for highest quality surface finish
• Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads from keel, mast and rigging
• Single point hoist for easy and safe lifting and launching of yacht
• Bathing platform incorporated in transom port with mechanical hoisting and lowering system
• Bathing ladder in stainless steel mounted onto bathing platform
• Continuous stainless steel rail protection mounted on sheerline
• X-Yachts style hull recessed portlights (6 pcs)

• Built in sandwich construction with vinylester and polyester resin and structural compressed foam
• Bi-directional E-glass strategically positioned for strength and weight optimization
• Outer surface layer of deck in white sprayed NGA Gelcoat (RAL 9010 white)
• Deck and locker lids moulded in female moulds for highest quality surface finish
• Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit sole, seats and bathing platform
• Bulwark with teak capping incorporated in deck/hull design
• Anchor locker - drained with space for 50 m anchor chain
• Gas locker for 2 x 3 kg gas bottle located in starboard side of aft deck
• Space for a 6 man life raft (530x325x800 mm) in stb side transom locker
• Gas springs fitted to all cockpit lockers (4 pcs)
• Halyard locker recessed into cockpit
• Cockpit table with space for navigational instruments (see extras) and compass

• First class craftsmanship characterize the wooden interior with a minimum number of visible screws
• Pre-selected, top grade teak veneer used throughout the yacht in varnished and hand polished satin finish
• Bulkheads in various thicknesses bonded to hull
• Bulkheads with white laminate surfaces with recessed teak panel looks
• GRP deck innerliner with integrated light fittings
• GRP hull liners for and aft including head floors and shower trays
• Floorboards of 20 mm marine plywood with imitated teak and Gaboon inlay stripes and inspection hatches to access bilge
• Freeboard in cabins of lined vinyl covered 4 mm plywood
• Soft white headlining panels in main cabin and owners
• Companionway steps are curved unvarnished teak and part of forward engine compartment openable door
• Handrails by entrance and alongside coach roof portlights in main cabin
• Blinds and flyscreen throughout on Oceanair skylights

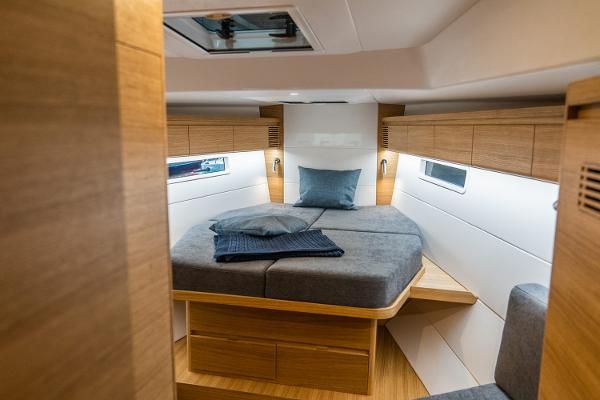

Owner's cabin

• Large double centre berth (200 x 150 cm) with curved laminated battens for improved ventilation and comfort
• Settee to starboard (95 x 35 cm)
• Double wardrobe (100 x 72 cm) to starboard with shelves and hangers
• Drawers below wardrobe on starboard (3 pcs)
• Freeboard cupboards and shelves above berth
• Extra shelving behind mast box (200 x 20 x 35 cm)
• Storage space under owners berth for bedding
• Floorboards with inspection hatch for good access to speed and depth transducers

Owner's head

• Bulkheads with white laminate surfaces
• Marine toilet, manually flushed (1 pcs)
• Dedicated shower compartment with Plexi glass doors
• Space for optional washing machine (see extras)

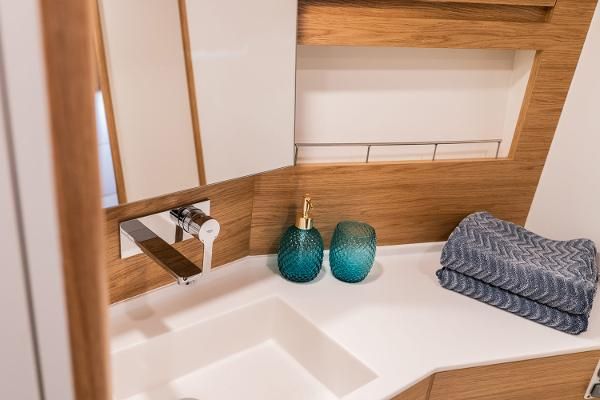

• Tabletop and wash basin in white GRP
• Single lever luxury mixer taps for wash basin and shower
• Electrical pump for shower floor sump (1 pcs), automatic
• Towel hooks and paper holder in stainless steel (2 pcs)
• Mirror integrated in cupboard doors (2 pcs)

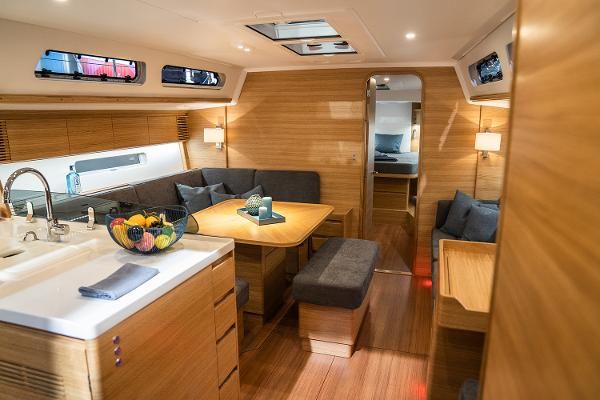

• Galley, U-shaped (163 cm x 151 cm). Large table top made in Camoan white Corian Sink, rectangular recessed stainless steel with single lever mixing tap (2 pcs) with 2 cutting boards made of Delrin material
• Cool box, GRP top opened 140 litres with 100 mm insulation, built in Isotherm SP accumulator plate cooled by water cooled Danfoss compressor
• Gas stove, ENO with 3 jets and oven is gimballed (1 pcs)
• Shelves, drawers and lockers with plexi glass sliding doors provide storage space for cutlery and food
• Waste bin mounted under sinks

• Main engine 75 HP diesel with Sail-drive freshwater cooled. Alternator charging capacity 60 A @ 12V and 80 A @ 24V
• Special engine room sound insulation ensures low noise level
• Engine is easily accessible for service from front through the companionway and from side through aft cabin
• Folding propeller, 3-bladed bronze for S-drive
• Engine control panel and throttle/gear lever placed in stb cockpit coaming.
• Engine control panel incorporates rpm
  meter, hour counter, acoustic alarm for oil pressure and cooling water temperature.
• Tanks in aluminium for fuel (440 l) below saloon seats. VDO analogue level gauge, baffles, inspection hatches, separator incl. filter and shut-of valve and deck fill
• Alarm and warning light activated in cockpit when consumption tank needs refilling

• 24V DC system throughout the yacht
• X-Yachts main switch board with 27 automatic fuses and 3 analogue VDO meters
• 12V DC system for main engine installation
• 24V to 12V converter for electronics installation
• Combined deck and steaming light fitted
• All cabling terminates in “dry” GRP box fitted behind main electrical panel for added safety
• AGM batteries (240 Ah @ 24V) are securely mounted under main cabin sofa (4 pcs). (Max capacity is 360Ah/24V)
• Separate engine spiral-cell battery (55 Ah, 12V) mounted near main engine, services only main engine
• Shore power installation with 10 Amp shore power inlet socket mounted in cockpit. The 230V AC distribution box with ground fault circuit breaker and 230V AC socket mounted at nav station
• Combined charger inverter 24V/1600 W/40A including remote control unit, mounted incl. 4 x 220V sockets mounted one in galley, chart table, owners cabin and owners toilet.
• 24V halogen lights fitted for general purpose below deck throughout the cabins
• Charttable light fitted
• General lights and dome spotlights integrated in inner liner
• Reading lights placed throughout aft cabin, main cabin and owners cabin (8 pcs)

• Fractional triple spreader, tapered silver anodized aluminium mast stepped on steel frame, specially designed for Xc 45
• Combined deck and steaming light, Windex with light, tube for additional electrical equipment and 2 mast steps fitted
• Silver anodized boom with double line reefing and internal boom outhaul with control on boom, telescopic vang and outer purchase block system

Standing Rigging

• Split backstay fitted with single Navtec 10 integral backstay adjuster on starboard side and turnbuckle on port
• Tip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• Discontinuous rod rigging throughout with rod turnbuckles
• Chain plates in stainless steel for forestay and split backstay (3 pcs)

Running Rigging

• Spectra halyards led back to cockpit for easy handling:
• Main halyard 12 mm (1 pcs)
• Genoa halyard 12 mm (1 pcs)
• Mast head spinnaker halyard 12 mm (1 pcs)
• Spectra and polyester control and reefing lines led back to cockpit self-tailing winches (6 pcs)
• Mainsheet 10 mm (1 pcs)
• Genoa sheet 12 mm (2 pcs)
• Reef 1 10 mm (2 pcs)
• Reef 2 10 mm (2 pcs)
• Furling control line 10 mm (1 pcs)
• Outhaul line 8 mm (1 pcs) on boom
• Vang control line 8 mm (1 pcs)

• Flag pole, teak with bronze bushing (1 pcs)
• Fire extinguishers, dry powder of 2 kg each, fitted throughout the yacht (3 pcs)
• Fenders, white air-filled with lanyards and X-Yachts logo (4 pcs)
• Mooring ropes, polyester 20 m x 14 mm (2 pcs)
